1. Water tank is a good helper in agricultural production. It is produced with PVC polyester composite materials, professional equipment, advanced technology. Mainly applied for water storage tank.
2. It plays an important role in conveying water, especially suitable for hill, mountainous area of water transportation.
3. Water bag can be customized vehicles suitable for all kinds of types models, it replaces the iron barrel which is heavy, easy to rust, shorter life, and rubber barrel.
4. It is soft, so that, when it loading on the truck, it will not brocken the body of the truck, so that extend the life of the tuck.
5. And it will not be affected by the season variation.
6. It can be folded when not in use to save space. It is good at impermeability and corrosion resistance, can be used to store liquid, stimulating odour of raw materials, its available 8-10 years of life.
| Quantity: | |
|---|---|

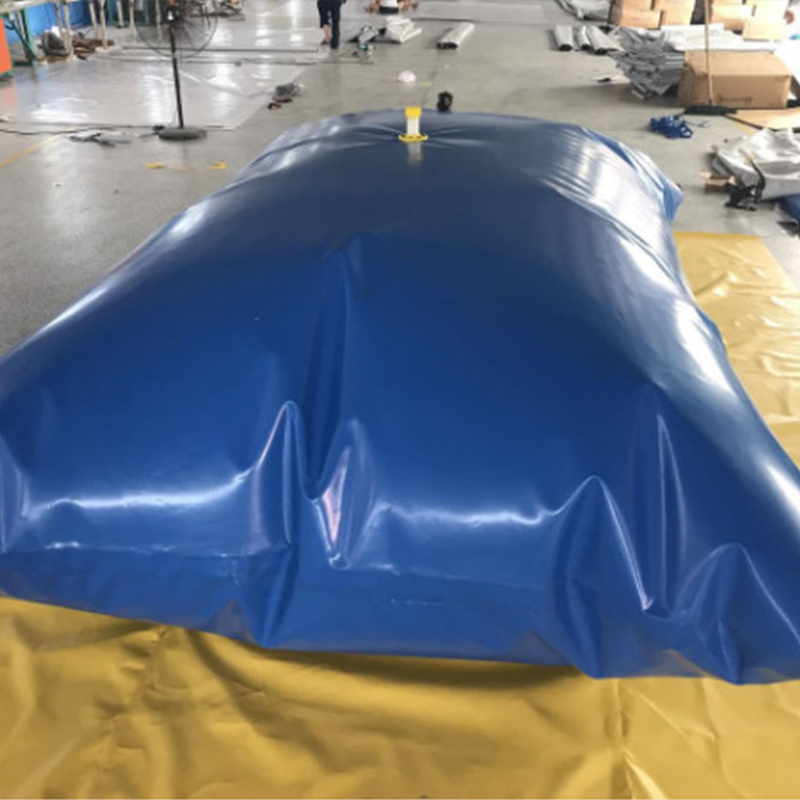

The 7000L Collapsible PVC Pillow Water Tank is a large-capacity, portable water storage solution designed to address high-volume liquid storage needs across commercial, agricultural, and industrial sectors. This PVC tarpaulin water tank features a collapsible design that balances spacious storage with easy mobility, making it perfect for outdoor events, remote worksites, and areas with limited infrastructure. Crafted with premium composite materials and advanced welding technology, it offers exceptional durability and leak resistance, outperforming traditional rigid tanks in versatility and convenience. Whether for irrigation, emergency water supply, or industrial liquid handling, this collapsible water container delivers reliable performance while saving valuable space when not in use.
With a generous storage capacity, the tank meets high-volume liquid needs without occupying excessive space when collapsed. It folds into a compact size, allowing easy storage in warehouses, trucks, or small sheds, eliminating the storage challenges of fixed-size tanks.
Constructed with heavy-duty PVC tarpaulin and a reinforced coating, the tank resists UV radiation, extreme temperatures, and chemical corrosion. It can withstand exposure to harsh outdoor conditions and a wide range of liquids, ensuring long-term reliability in demanding environments.
The lightweight, flexible design enables effortless transportation across worksites, farms, or remote areas. It requires no complex tools for setup—simply unfold, position, and connect hoses for immediate use. The integrated D-rings provide secure anchoring, preventing movement during filling or transportation.
This collapsible water tank replaces heavy, rust-prone iron barrels and short-lived rubber containers, reducing replacement costs and environmental waste. Its long service life and low maintenance requirements make it a cost-effective choice for long-term use, while the recyclable materials align with eco-friendly practices.
The tank is constructed with high-quality polyester woven fabric that adheres to international standards, providing a strong and stable base. The fabric is coated with premium PVC, which enhances impermeability and tear resistance, ensuring the tank can withstand high liquid pressure. The tank is assembled using high-frequency welding, creating seamless, leak-proof joints that eliminate the risk of liquid seepage. The metal or copper eyelets are strategically placed for easy lifting and anchoring, while the inlet and outlet hoses are designed for secure connections. The material’s flexibility allows for repeated folding without damaging the structure, and the coating’s adhesion ensures long-lasting performance even with frequent use.
| Item No | Descriptions | Unit | Your Product Measurements | |
| 1 | Material of the Woven Fabric DIN60001 | Polyester | ||
| 2 | Weave DIN ISO 9354 | Panama | ||
| 3 | Count of Yarn | Warp: | Denier | 1000 |
| Weft: | Denier | 1000 | ||
| 4 | Setting/ Number of Threads | Warp: | Threads/cm | 30 |
| DIN EN 1049 | Weft: | Threads/cm | 30 | |
| 5 | Base Coat | PVC | ||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 260 | |
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 1200 | |
| 8 | Tensile Strength DIN 53354 | Warp: | N/5cm | 4500 |
| Weft: | N/5cm | 4000 | ||
| 9 | Tear Resistance DIN 53363 | Warp: | N | 500 |
| Weft: | N | 460 | ||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 120 | |
| 11 | Adhesion (Welding) | Kg/5cm | 12 |
KT-P-7000
| Model NO. | KT-P-7000 |
| Material Eyelet | Metal or Copper |
| Payment Term | T/T |
| Technology | High Frequency Welding |
| Material | 60% Polyester and 40% PVC |
| Applications | Transportation Textiles |
| Type | Tarpaulin |
| Pattern | Any Colors |
| Width | Any Sizes |
| Gram Weight | 610g-1200g |
| Structure | High Frequency Welding |
| Transport Package | PVC Bag |
| Specification | 100L-100000L |
| Trademark | OEM |
| Origin | China |
| HS Code | 6307900090 |
Size
Ideal for large-scale farms and ranches, the tank stores irrigation water, liquid fertilizers, and drinking water for livestock. Its portability allows for placement near fields or pastures, ensuring easy access to water for crops and animals.
Suitable for storing industrial fluids such as detergents, disinfectants, herbicides, and printing ink. It also serves as a reliable storage solution for commercial facilities, including restaurants, hotels, and event venues, for storing cleaning agents or emergency water.
A critical tool for disaster relief efforts, the tank can quickly collect and store rainwater or transported water to support affected communities. Its large capacity ensures an adequate supply for drinking, cooking, and sanitation during emergencies.
Perfect for construction sites, camping grounds, and outdoor events, providing a portable water source for workers, attendees, or equipment. It can also store wastewater for proper disposal, maintaining cleanliness at the site.
The collapsible design allows the tank to be folded into a compact size when empty, saving storage space and reducing transportation costs. It can be easily carried or loaded onto vehicles without requiring heavy machinery.
Yes, the tank is made from food-grade compatible materials, making it safe for storing drinking water and other edible liquids. It meets strict safety standards to ensure no contamination.
Regularly rinse the tank with clean water after use, especially when storing chemicals. Avoid sharp objects that may puncture the material, and store it in a dry, shaded area when not in use to prolong its lifespan.
