1. Water tank is a good helper in agricultural production. It is produced with PVC polyester composite materials, professional equipment, advanced technology. Mainly applied for water storage tank.
2. It plays an important role in conveying water, especially suitable for hill, mountainous area of water transportation.
3. Water bag can be customized vehicles suitable for all kinds of types models, it replaces the iron barrel which is heavy, easy to rust, shorter life, and rubber barrel.
4. It is soft, so that, when it loading on the truck, it will not brocken the body of the truck, so that extend the life of the tuck.
5. And it will not be affected by the season variation.
6. It can be folded when not in use to save space. It is good at impermeability and corrosion resistance, can be used to store liquid, stimulating odour of raw materials, its available 8-10 years of life.
| Quantity: | |
|---|---|

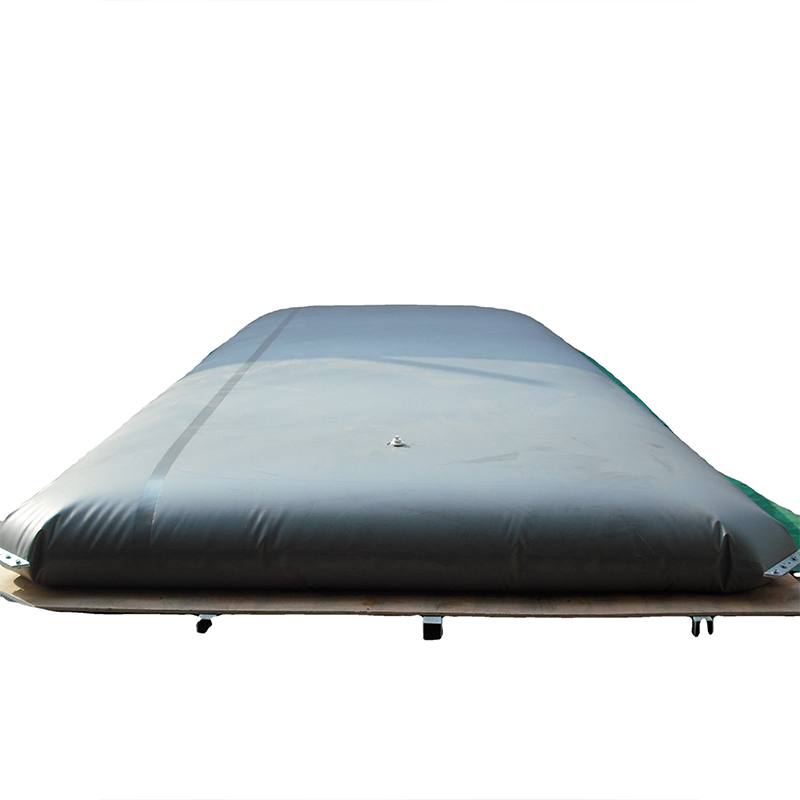

The Pillow PVC TPU Coated Tarpaulin Water Storage Tank is a premium, portable water container designed to meet diverse storage and transportation needs across industries. Crafted with advanced technology and high-quality materials, this agricultural water storage solution combines flexibility and durability, making it an indispensable tool for water management in rural, mountainous, and remote areas. Unlike rigid containers, its lightweight design ensures easy handling, while the integrated PVC TPU coating enhances performance, making it suitable for both short-term and long-term use. Whether for agricultural irrigation, liquid transportation, or emergency water reserve, this food-grade water storage tank delivers reliable performance in various environmental conditions.
The pillow-style water tank features a soft, foldable design that allows effortless storage when not in use. It occupies minimal space, eliminating the hassle of bulky storage that plagues traditional iron or rubber barrels. This flexibility also enables easy loading onto trucks without damaging the vehicle body, extending the lifespan of your transportation equipment.
Made from a high-grade polyester and PVC composite material with an additional TPU coating, the tank boasts exceptional impermeability and corrosion resistance. It withstands exposure to harsh chemicals, stimulating odors, and seasonal temperature fluctuations, ensuring a prolonged service life. Unlike rust-prone iron barrels or fragile rubber containers, this tank maintains structural integrity even with regular use.
This portable water tank is fully customizable to fit different vehicle models and application scenarios. It excels in water conveyance in hilly and mountainous regions, where traditional transportation methods are challenging. Its adaptability also extends to various liquid types, from food-grade substances to industrial fluids, making it a versatile choice for multiple industries.
The smooth, non-porous surface of the PVC TPU coated tarpaulin prevents residue buildup, simplifying cleaning and maintenance. It requires no complex upkeep, saving time and resources for users. Additionally, the tank’s robust construction reduces the risk of leaks or damage, minimizing replacement costs over time.
The water storage tank is engineered with high-quality polyester woven fabric that follows international weaving standards, ensuring structural stability and strength. The fabric features a dense weave pattern that enhances load-bearing capacity, while the dual-layer coating of PVC and TPU reinforces impermeability and resistance to tearing. The tank is assembled using high-frequency welding technology, which creates seamless joints for maximum leak protection. The metal or copper eyelets provide secure attachment points, facilitating easy installation and transportation. The coating adhesion is optimized to prevent peeling, even with frequent folding and unfolding, and the material’s tensile strength ensures it can withstand the pressure of stored liquids without deformation.
| Item No | Descriptions | Unit | Your Product Measurements | |
| 1 | Material of the Woven Fabric DIN60001 | Polyester | ||
| 2 | Weave DIN ISO 9354 | Panama | ||
| 3 | Count of Yarn | Warp: | Denier | 1000 |
| Weft: | Denier | 1000 | ||
| 4 | Setting/ Number of Threads | Warp: | Threads/cm | 30 |
| DIN EN 1049 | Weft: | Threads/cm | 30 | |
| 5 | Base Coat | PVC | ||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 260 | |
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 1200 | |
| 8 | Tensile Strength DIN 53354 | Warp: | N/5cm | 4500 |
| Weft: | N/5cm | 4000 | ||
| 9 | Tear Resistance DIN 53363 | Warp: | N | 500 |
| Weft: | N | 460 | ||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 120 | |
| 11 | Adhesion (Welding) | Kg/5cm | 12 | |
| Model NO. | KT-P-4000 |
| Material Eyelet | Metal or Copper |
| Payment Term | T/T |
| Technology | High Frequency Welding |
| Material | 60% Polyester and 40% PVC |
| Applications | Transportation Textiles |
| Type | Tarpaulin |
| Pattern | Any Colors |
| Width | Any Sizes |
| Gram Weight | 610g-1200g |
| Structure | High Frequency Welding |
| Transport Package | PVC Bag |
| Specification | 100L-100000L |
| Trademark | OEM |
| Origin | China |
| HS Code | 6307900090 |
Size
Ideal for storing a wide range of food-grade liquids, including mineral water, fruit juice concentrates, soy sauce, vinegar, and various sugar syrups. It is also suitable for liquid medicines, food additives, and sorbitol, meeting strict safety standards for edible products.
A reliable agricultural water tank for storing irrigation water, fertilizers, and liquid pesticides. It supports crop cultivation in areas with limited water access, ensuring consistent water supply for optimal plant growth. Its portability makes it easy to move between fields, adapting to different farming needs.
Suitable for storing industrial-grade liquids such as detergents, cleaning agents, printing ink, latex, and herbicides. It can also hold salt water, industrial water, preservatives, and disinfectants, providing a safe and durable solution for industrial facilities.
Perfect for emergency situations such as natural disasters or water shortages. It can quickly collect and store rainwater or transported water, ensuring a steady supply for residential, commercial, or community use.
