1. Water tank is a good helper in agricultural production. It is produced with PVC polyester composite materials, professional equipment, advanced technology. Mainly applied for water storage tank.
2. It plays an important role in conveying water, especially suitable for hill, mountainous area of water transportation.
3. Water bag can be customized vehicles suitable for all kinds of types models, it replaces the iron barrel which is heavy, easy to rust, shorter life, and rubber barrel.
4. It is soft, so that, when it loading on the truck, it will not brocken the body of the truck, so that extend the life of the tuck.
5. And it will not be affected by the season variation.
6. It can be folded when not in use to save space. It is good at impermeability and corrosion resistance, can be used to store liquid, stimulating odour of raw materials, its available 8-10 years of life.
| Quantity: | |
|---|---|

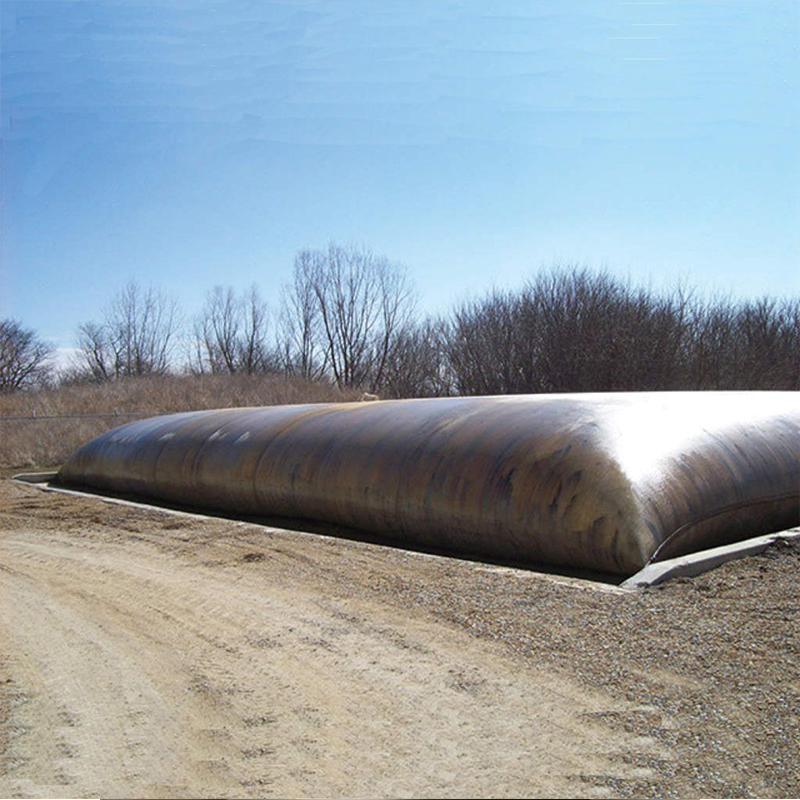

The PVC Tarpaulin Pillow Bladder Tanks are innovative portable water tanks crafted from high-quality PVC polyester composite materials through advanced professional equipment and technology. Designed primarily for water storage and transportation, these bladder tanks have become an indispensable tool in agricultural production and various liquid storage scenarios. Unlike traditional heavy and cumbersome storage containers, they feature a flexible, pillow-like design that adapts to different usage environments, making them especially practical for remote areas such as hills and mountainous regions where water transportation is challenging. Whether for storing clean water, industrial liquids, or food-grade substances, these tanks deliver reliable performance with their excellent structural design and premium materials.
One of the standout features of these portable water tanks is their foldable nature. When not in use, they can be easily folded to a compact size, significantly saving storage and transportation space. Their soft texture ensures they won’t damage truck bodies during transportation, extending the service life of your vehicles. This flexibility also allows them to fit various vehicle models, offering versatile installation options.
Built with high-grade PVC polyester composite materials, the bladder tanks boast exceptional impermeability and corrosion resistance, enabling them to store a wide range of liquids—from water to corrosive industrial raw materials—without leakage or degradation. They are not affected by seasonal temperature variations, maintaining stability in both hot and cold conditions. Compared to traditional iron barrels that rust easily and rubber barrels with short service lives, these PVC Tarpaulin Pillow Bladder Tanks offer a much longer service life, providing cost-effective storage solutions.
These tanks support customization to match different vehicle types and usage requirements, ensuring a perfect fit for your specific needs. Whether you need a tank for agricultural irrigation, emergency water supply, or industrial liquid transfer, they can be tailored to meet your demands. Their compatibility with various liquids—including food-grade and industrial-grade substances—further enhances their versatility, making them a multi-functional storage solution for diverse industries.
The PVC Tarpaulin Pillow Bladder Tanks feature a robust structure composed of a polyester woven fabric base coat with a PVC coating, ensuring optimal strength and durability. The fabric is woven using a specialized technique that enhances its tensile and tear resistance, while the high-frequency welding process used in manufacturing guarantees strong adhesion between seams, preventing leakage. The yarn count and thread setting of the base fabric are carefully selected to provide maximum structural stability, and the PVC coating adds an extra layer of protection against external elements. The tanks are designed to withstand regular use in harsh environments, with excellent resistance to wear, chemicals, and UV radiation.
| Item No | Descriptions | Unit | Your Product Measurements | |
| 1 | Material of the Woven Fabric DIN60001 | Polyester | ||
| 2 | Weave DIN ISO 9354 | Panama | ||
| 3 | Count of Yarn | Warp: | Denier | 1000 |
| Weft: | Denier | 1000 | ||
| 4 | Setting/ Number of Threads | Warp: | Threads/cm | 30 |
| DIN EN 1049 | Weft: | Threads/cm | 30 | |
| 5 | Base Coat | PVC | ||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 260 | |
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 1200 | |
| 8 | Tensile Strength DIN 53354 | Warp: | N/5cm | 4500 |
| Weft: | N/5cm | 4000 | ||
| 9 | Tear Resistance DIN 53363 | Warp: | N | 500 |
| Weft: | N | 460 | ||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 120 | |
| 11 | Adhesion (Welding) | Kg/5cm | 12 |
KT-P-2000
| Model NO. | KT-P-20000 |
| Material Eyelet | Metal or Copper |
| Payment Term | T/T |
| Technology | High Frequency Welding |
| Material | 60% Polyester and 40% PVC |
| Applications | Transportation Textiles |
| Type | Tarpaulin |
| Pattern | Any Colors |
| Width | Any Sizes |
| Gram Weight | 610g-1200g |
| Structure | High Frequency Welding |
| Transport Package | PVC Bag |
| Specification | 100L-100000L |
| Trademark | OEM |
| Origin | China |
| HS Code | 6307900090 |
Size
These portable water tanks are safe for storing food-grade liquids, including alcohol, fruit juice concentrates, mineral water, soy sauce, vinegar, malt, and various sugar waters. They meet strict hygiene standards, ensuring no contamination of edible substances, making them ideal for food processing plants, beverage manufacturers, and catering businesses.
In industrial settings, the tanks are widely used for storing and transporting detergent, salt water, industrial water, cleaning agents, printing ink, latex, herbicides, preservatives, and fertilizers. Their corrosion resistance and impermeability make them suitable for handling potentially harmful or corrosive industrial liquids, providing a secure and efficient storage solution for factories, construction sites, and mining operations.
As a reliable agricultural water tank, they play a crucial role in irrigation, livestock watering, and water storage for rural households. Their portability allows farmers to easily transport water to remote fields in hills and mountainous areas, solving the problem of water scarcity in agricultural production.
A: The warranty period covers 12 to 18 months from the shipping date, ensuring you get reliable use of your portable water storage solution.
A: Yes, we offer customization services to adapt the tanks to different vehicle models and specific usage requirements, including size, shape, and additional features.
A: We implement strict quality control measures throughout the production process, from testing raw materials for strength to inspecting each step of coating, welding, and packing. Our dedicated quality control department oversees every detail to ensure product reliability.
A: Absolutely, we can print your custom logo or design on the tank or its packaging box, helping you promote your brand while using the product.
