1.Anti Static
For the airduct tarpaulin, we can make it to be anti static at 10*8. The tarpaulin can be used to make big ventiatlion duct in mining industry.
2. Fire resistant
Our tarpaulin for airduct is fire resistant, it is M1 and B1 and NFPA701 compliant.
3. High Strength
We use high strength polyester fabric to make the tarpaulin, the tear strength can reach to 400N.
| Quantity: | |
|---|---|
The 730GSM Heavy-Duty Anti-Static FR Mining Tunnel Ventilation Flex Duct is a premium ventilation solution engineered specifically for the demanding conditions of underground mining and tunnel projects. Designed to deliver reliable airflow while addressing critical safety concerns, this anti-static flex duct combines robust construction with industry-leading protective features. Crafted from high-grade materials, it stands up to the harsh environments of underground operations, ensuring consistent performance and long-term durability. Whether used in deep mining shafts or large-scale tunnel constructions, this mining ventilation duct is a trusted choice for professionals prioritizing safety, efficiency, and resilience.
This mining tunnel ventilation duct features advanced anti-static technology that effectively dissipates electrostatic charges, eliminating the risk of sparks in volatile underground environments. The specialized treatment ensures continuous static protection, safeguarding both equipment and personnel from potential hazards associated with static buildup.
As an FR (Fire-Resistant) ventilation duct, it meets global safety standards including M1, B1, and NFPA701, providing critical fire protection in enclosed mining spaces. The fire-resistant properties slow flame spread, giving valuable time for evacuation and emergency response in the event of a fire.
Built with heavy-duty polyester fabric, the 730GSM flex duct offers exceptional tensile and tear resistance. Its rugged construction withstands abrasion, impacts, and the physical stresses of installation and daily use in mining tunnels, reducing the need for frequent replacements.
Formulated with high-quality PVC coating and a precision lamination process, this underground ventilation duct exhibits excellent anti-aging properties. It resists degradation from temperature fluctuations, humidity, and chemical exposure, maintaining performance even in long-term underground deployments.
The 730GSM mining ventilation duct features a polyester woven fabric base with a plain weave structure, ensuring uniform strength across the entire duct surface. The fabric is coated with a durable PVC base coat that enhances protection against moisture and environmental damage. The lamination production technique ensures strong adhesion between layers, preventing delamination and maintaining structural integrity. It boasts excellent color fastness, retaining its appearance and performance through extended use. The duct operates effectively within a wide temperature range, adapting to the varying conditions of underground mining sites. Its welding adhesion and coating adhesion are engineered for maximum stability, ensuring the duct remains secure and leak-free during operation.
| Item No | Descriptions | Unit | Your Product Measurements | |
| 1 | Material of the Woven Fabric DIN60001 | Polyester | ||
| 2 | Weave DIN ISO 9354 | Plain Weave | ||
| 3 | Count of Yarn | Warp: | Denier | 1000 |
| Weft: | Denier | 1000 | ||
| 4 | Setting/ Number of Threads | Warp: | Threads/cm | 20 |
| DIN EN 1049 | Weft: | Threads/cm | 20 | |
| 5 | Base Coat | PVC | ||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 175 | |
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 650 | |
| 8 | Tensile Strength DIN 53354 | Warp: | N/5cm | 2800 |
| Weft: | N/5cm | 2500 | ||
| 9 | Tear Resistance DIN 53363 | Warp: | N | 250 |
| Weft: | N | 220 | ||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 100 | |
| 11 | Adhesion (Welding) | Kg/5cm | 10 |
KT-VD-005
| Model | KT-VD-005 |
| Application | ventilation ventilation |
| Production technique | lamination |
| Weight | 730g/m2 |
| Base fabric | 1000d*2000d 20*10/inch (1100dtex*2200dtex 8*4/cm) |
| Tensile strength (EN ISO 1421) | warp: 2500N/5cm weft: 2000N/5cm |
| Tear strength (DIN 53363) | warp: 230N weft: 300N |
| Adhesion (EN ISO 2411) | 90N/5cm |
| Flame resistance | B1/B2/M1/M2/Bs2d0/NFPA701, optional |
| Anti static | ≤1.e8Ω |
| Color fastness (EN ISO 105-B02) | ≥6 |
| Temprature range (DIN 53361) | -30℃~70℃ |

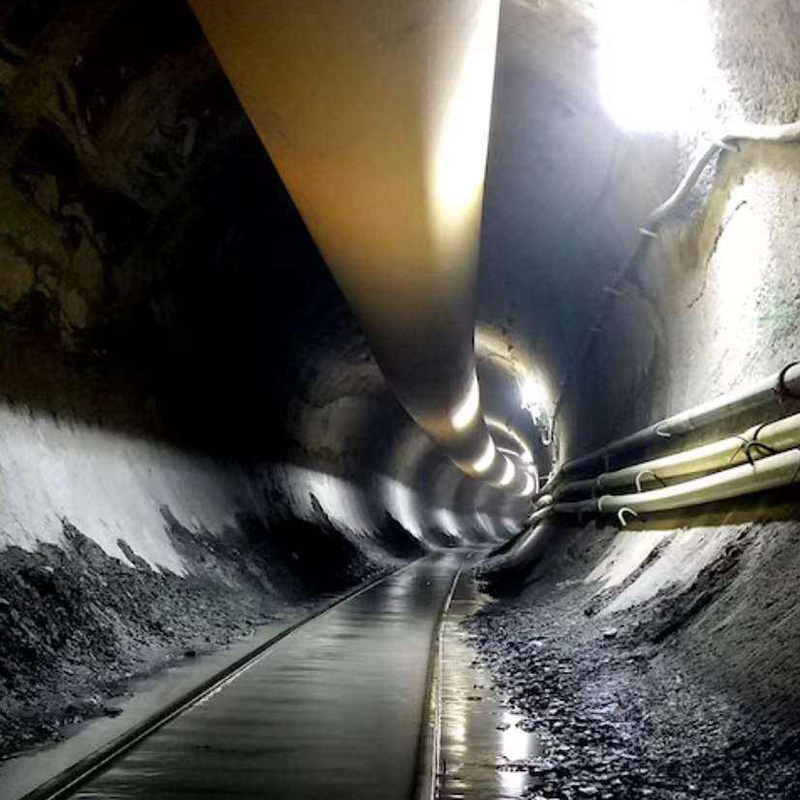

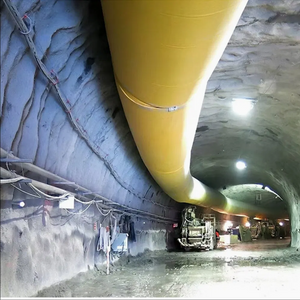

This anti-static FR mining duct is widely utilized in underground mining tunnels and tunnel construction projects across Germany, Australia, South Africa, South America, Russia, and India. It serves as a key component in ventilation systems, delivering fresh air to underground work areas and removing harmful gases and dust. Ideal for both large-scale mining operations and smaller tunnel projects, it is compatible with various ventilation setups. The heavy-duty ventilation solution is also suitable for environments requiring strict safety compliance, including coal mines, metal mines, and civil engineering tunnels. Its versatility and reliability make it a preferred choice for mining companies and contractors seeking a low-maintenance, high-performance ventilation duct.
This is a made-to-order product, with width customization based on your specific needs. Knife coated fabric options offer a maximum width of 3.2m, while semi coated fabric can reach up to 5.0m.
Production usually takes within 35 days from the date of order confirmation, ensuring timely delivery while maintaining strict quality control.
We offer shipping from both Shanghai port and Ningbo port, providing flexible logistics options for global shipments.
Container loading quantities depend on the specific requirements of your order, including duct dimensions and weight constraints. Share your approximate order details, and we will analyze the most efficient loading plan for you.
