1.Anti Static
For the airduct tarpaulin, we can make it to be anti static at 10*8. The tarpaulin can be used to make big ventiatlion duct in mining industry.
2. Fire resistant
Our tarpaulin for airduct is fire resistant, it is M1 and B1 and NFPA701 compliant.
3. High Strength
We use high strength polyester fabric to make the tarpaulin, the tear strength can reach to 400N.
| Quantity: | |
|---|---|
The 600GSM Flexible Flame Retardant PVC Fabric is a high-performance material specifically engineered for Mining Tunnel Ventilation Duct applications. Crafted with precision, this PVC Laminated Coated Fabric combines durability and safety to meet the rigorous demands of underground mining environments. Its flexible design allows for easy installation and maneuverability in narrow tunnel spaces, while core properties like anti-static performance and fireproof protection make it an indispensable choice for critical ventilation systems. Whether used in deep mining operations or large-scale tunnel projects, this fabric delivers consistent reliability to ensure operational safety and efficiency.
This Anti-Static PVC Coated Fabric is designed to eliminate static buildup, a key hazard in underground mining settings. The specialized formulation ensures stable electrical conductivity, preventing sparks that could ignite flammable substances. It seamlessly integrates into mining ventilation duct systems, reducing the risk of accidents and complying with industry safety standards.
Equipped with flame retardant technology, the fabric resists ignition and slows the spread of fire, adhering to global safety certifications. This critical feature safeguards personnel and equipment in enclosed tunnel environments, providing valuable time for evacuation and emergency response. The fireproof PVC material maintains its structural integrity even in high-temperature scenarios.
Built on a high-strength polyester base, the fabric boasts impressive tensile and tear resistance, capable of withstanding the physical stresses of mining operations. Its robust construction resists abrasion, tearing, and wear from constant use, ensuring a long service life in harsh underground conditions. The strong adhesion between the base fabric and PVC coating prevents delamination, enhancing overall durability.
The flexible PVC fabric adapts to various duct shapes and sizes, supporting custom fabrication for specific project needs. It also exhibits excellent anti-aging properties, resisting degradation from moisture, chemicals, and temperature fluctuations common in mining environments. This versatility makes it suitable for both temporary and permanent ventilation systems.
The fabric features a premium polyester woven base constructed with a plain weave pattern, ensuring uniform strength across all directions. A high-quality PVC coating is applied using advanced knife coating technology, creating a seamless and protective layer that enhances water resistance and structural stability. The material incorporates anti-static additives to achieve consistent electrical performance, while flame retardant compounds are integrated into the coating for reliable fire protection. It operates effectively within a wide temperature range, adapting to the extreme conditions of underground mines and tunnels. The fabric’s surface treatment ensures compatibility with high-frequency welding, enabling secure and airtight connections for ventilation ducts.
| Item No | Descriptions | Unit | Your Product Measurements | |
| 1 | Material of the Woven Fabric DIN60001 | Polyester | ||
| 2 | Weave DIN ISO 9354 | Plain Weave | ||
| 3 | Count of Yarn | Warp: | Denier | 1000 |
| Weft: | Denier | 1000 | ||
| 4 | Setting/ Number of Threads | Warp: | Threads/cm | 20 |
| DIN EN 1049 | Weft: | Threads/cm | 20 | |
| 5 | Base Coat | PVC | ||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 175 | |
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 650 | |
| 8 | Tensile Strength DIN 53354 | Warp: | N/5cm | 2800 |
| Weft: | N/5cm | 2500 | ||
| 9 | Tear Resistance DIN 53363 | Warp: | N | 250 |
| Weft: | N | 220 | ||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 100 | |
| 11 | Adhesion (Welding) | Kg/5cm | 10 |
KT-VD-003
| Model | KT-VD-003 |
| Application | ventilation ventilation |
| Production technique | knife coating |
| Weight | 600g/m2 |
| Base fabric | 840d*840d 18*18/inch (924dtex*924dtex 7*7/cm) |
| Tensile strength (EN ISO 1421) | warp: 2200N/5cm weft: 2000N/5cm |
| Tear strength (DIN 53363) | warp:200N weft: 180N |
| Adhesion (EN ISO 2411) | 70N/5cm |
| Flame resistance | B1/B2/M1/M2/Bs2d0/NFPA701, optional |
| Anti static | ≤1.e8Ω |
| Color fastness (EN ISO 105-B02) | ≥6 |
| Temprature range (DIN 53361) | -30℃~70℃ |

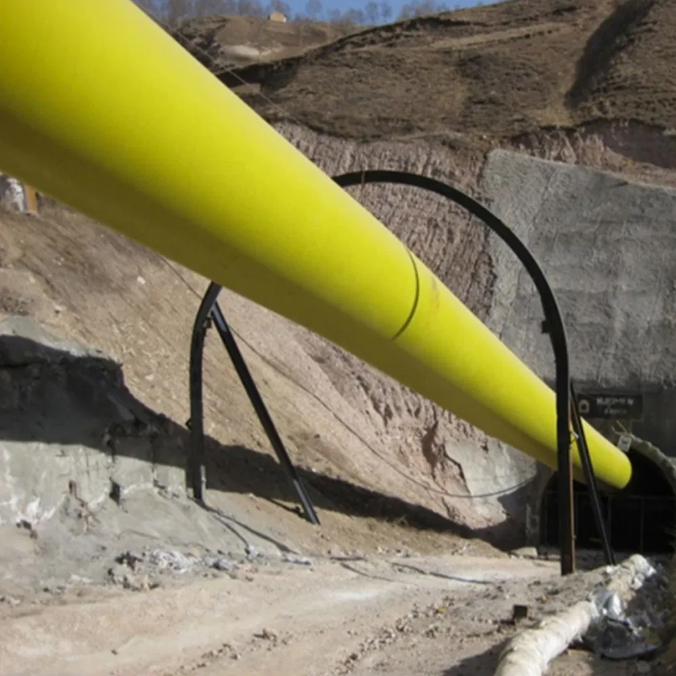

This 600GSM Flame Retardant PVC Fabric is primarily used as the core material for Underground Mining Tunnel Anti-Static Flex Ventilation Ducts. It is widely adopted in mining and tunnel projects across Europe, Australia, South Africa, South America, Russia, and India, where safety and durability are paramount. Beyond ventilation ducts, the fabric serves as a reliable material for other mining-related applications requiring anti-static and flame retardant properties, such as temporary enclosures and protective covers. Its ability to withstand mechanical stress and harsh environmental factors makes it ideal for large-scale mining operations, infrastructure tunnels, and underground construction projects.
It is a customized product, so we manufacture it according to your specific requirements. For knife-coated fabric, the maximum available width is 3.2m, while semi-coated fabric can reach up to 5.0m in width.
Typically, the lead time is within 35 days from the date the order is confirmed, ensuring we maintain strict quality control throughout production.
We offer shipment from both Shanghai port and Ningbo port, providing flexible logistics options for global customers.
The quantity depends on the specific product specifications, as we need to consider container space and weight limitations. Share your approximate order details, and we will analyze the requirements to propose the most efficient packaging and shipping plan.
