1) High Strength to prevent any damage during installing.
2) Outdoor life assurance, good weather resistance. (3-5 years)
3) Special treatments adopted to fit into different industry.
4) Special Treatment available: Flame Retardant; Anti-Static; Anti-cold; Anti-mildew; 3P
| Quantity: | |
|---|---|
The 680 GSM PVC truck cover is a high-performance protective solution engineered with coated tarpaulin that excels in waterproof and inflaming retarding capabilities. Designed for heavy-duty use, this durable truck cover is crafted from a blend of PVC and polyester fabric, offering exceptional resistance to outdoor elements and physical damage. It serves as a versatile covering for trucks, cargo, tents, and various industrial applications, providing reliable protection against rain, UV rays, dust, and fire hazards. With customizable shapes, sizes, and colors, it meets the unique needs of different industries and usage scenarios.
Exceptional Strength: Features high tensile and tear strength, preventing damage during installation, transportation, and daily use.
Long Outdoor Service Life: Offers excellent weather resistance, ensuring reliable performance for years in outdoor environments.
Multi-Functional Special Treatments: Available with specialized treatments including flame retardant, anti-static, anti-cold, anti-mildew, and 3P compliance, adapting to diverse working conditions.
Customization Versatility: Supports customization of shapes (round, square, irregular, etc.), sizes, colors, and surface finishes (glossy or matte), matching specific application requirements.
Secure Fixing: Equipped with high-quality eyelets (stainless steel 304, brass, zinc, or aluminum) with claws for secure and stable installation.
Broad Width Range: Available in widths from 1.02m to 5.10m, accommodating large-scale covering needs without excessive seams.
The truck cover is constructed with a polyester woven fabric base, utilizing plain weave technology for balanced strength in warp and weft directions. The fabric is coated with PVC through hot melt and knife-over-roller processes, ensuring uniform coating thickness and strong adhesion. The total weight of the tarpaulin ranges from 600 to 1200 g/m², with the 680 GSM variant offering an optimal balance of durability and flexibility. The material exhibits excellent tensile and tear resistance, with strong welding adhesion to prevent water penetration. It also features UV resistance, protecting both the cover and the underlying cargo from sun damage. The coating process enhances the tarpaulin’s waterproof performance, ensuring no water seepage even in heavy rain.

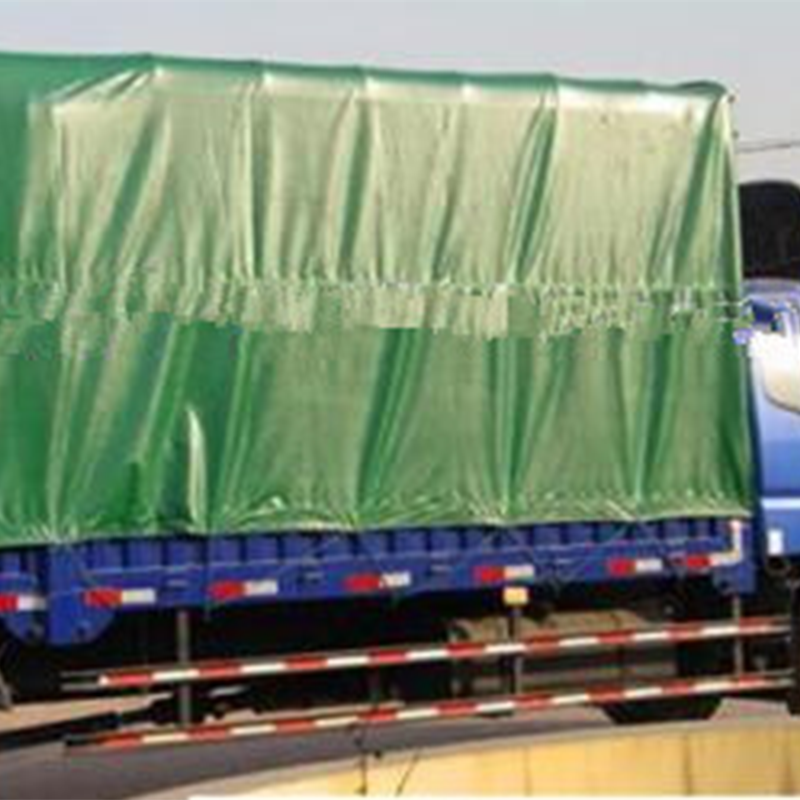

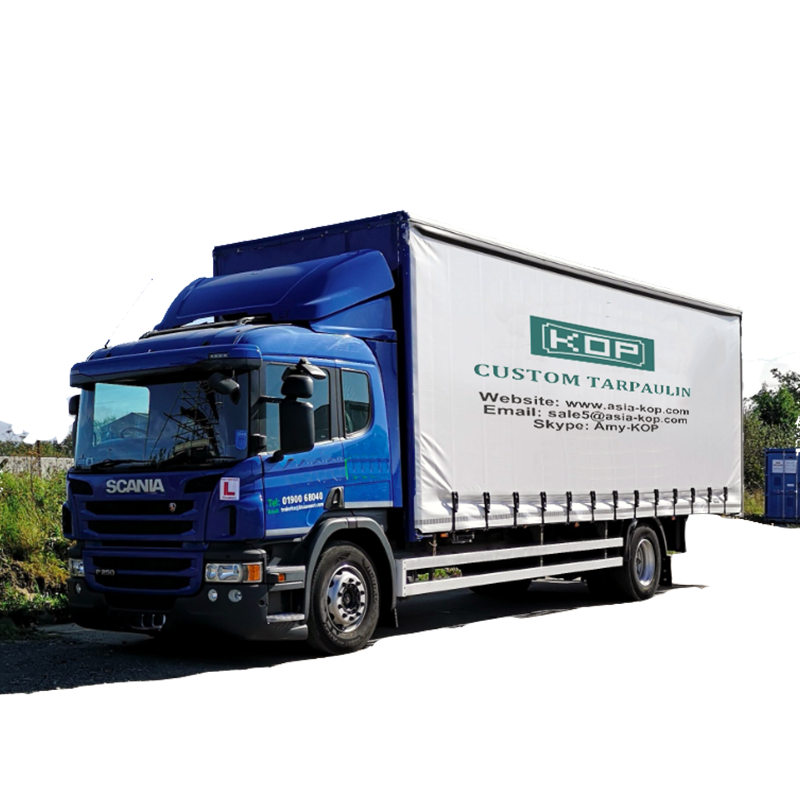

Ideal as a truck cover and side curtain, protecting cargo from moisture, dust, and external impacts during transportation. Suitable for all types of trucks, including commercial vehicles and specialty transport vehicles.
Widely used for manufacturing awnings, tents, and inflatable products. Serves as an effective adumbral material for building facilities and residential homes, providing shade and protection against weather elements.
Suitable for harsh industrial settings requiring flame retardant or anti-static properties. Can be used as covers for machinery, equipment, and storage piles, preventing damage from environmental factors and potential fire hazards.
| Item No | Descriptions | Unit | Your Product Measurements | |
| 1 | Material of the Woven Fabric DIN60001 | Polyester | ||
| 2 | Weave DIN ISO 9354 | Plain Weave | ||
| 3 | Count of Yarn | Warp: | Denier | 1000 |
| Weft: | Denier | 1300 | ||
| 4 | Setting/ Number of Threads | Warp: | Threads/cm | 20 |
| DIN EN 1049 | Weft: | Threads/cm | 18 | |
| 5 | Base Coat | PVC | ||
| 6 | Weight of the cloth DIN EN 12127 | g/m² | 185 | |
| 7 | Total Weight DIN EN ISO-2286-2 | g/m² | 600-1200 | |
| 8 | Tensile Strength DIN 53354 | Warp: | N/5cm | 3000 |
| Weft: | N/5cm | 2600 | ||
| 9 | Tear Resistance DIN 53363 | Warp: | N | 400 |
| Weft: | N | 360 | ||
| 10 | Adhesion (Coating) DIN 53357 | N/5cm | 100 | |
| 11 | Adhesion (Welding) | Kg/5cm | 10 |
| Model | KT-TC-680 |
| Product name | Durable PVC Truck Cover Coated Tarpaulin Waterproof Inflaming Retarding Tarpaulin Truck Cover |
| Raw material | 65% PVC+ 35% Polyester Fabric |
| Coating | Hot Melt & Knife-Over-Roller |
| Weight | 680gsm |
| Yarn Count | 1000x1000D |
| UV Resistance | Available |
| Cover shape | Round, Square, Circle Rectangle, Triangle, Heart, Oval, Half-Circle, Trapezium, Hexagon, Pentagon, Teardrop, Diamond, Irregular Shape |
| Size | 1.9x2.1m,2.3x3.6m,3.5x4.4m,2.5x2.67m,3x3.7m, 4.5*7m,6*10m, Accept Customization |
| Surface | Glossy, Matte |
| Eyelet | Stainless Steel 304 With Claw, Brass, Zinc, Aluminum |
| Color | Any color can be customized |
| OEM | Accept |
KT-TC-680
| Model | KT-TC-680 |
| Product name | Durable PVC Truck Cover Coated Tarpaulin Waterproof Inflaming Retarding Tarpaulin Truck Cover |
| Raw material | 65% PVC+ 35% Polyester Fabric |
| Coating | Hot Melt & Knife-Over-Roller |
| Weight | 680gsm |
| Yarn Count | 1000x1000D |
| UV Resistance | Available |
| Cover shape | Round, Square, Circle Rectangle, Triangle, Heart, Oval, Half-Circle, Trapezium, Hexagon, Pentagon, Teardrop, Diamond, Irregular Shape |
| Size | 1.9x2.1m,2.3x3.6m,3.5x4.4m,2.5x2.67m,3x3.7m, 4.5*7m,6*10m, Accept Customization |
| Surface | Glossy, Matte |
| Eyelet | Stainless Steel 304 With Claw, Brass, Zinc, Aluminum |
| Color | Any color can be customized |
| OEM | Accept |
We are Kotin, a professional manufacturer with over 14 years of experience in producing PVC coated tarpaulins and truck covers.
Our advantages include over 14 years of production experience, a professional sales team, 24/7 customer service, high-quality products, and competitive pricing.
Yes, we provide free samples. Simply provide your delivery address and freight collect account, and the sample will be shipped within 3 days of your request.
Absolutely, we accept OEM orders and can customize the tarpaulin based on your specific requirements for size, shape, color, surface finish, and special treatments.
